PROSE optical fiber raceway is a set of products that can provide full protection for optical fibers and facilitate operation.
The basic components include: channel body, connectors, horizontal elbows, vertical elbows, horizontal tees, horizontal crosses, vertical tees, adapters, terminal end caps, fiber outlets, bell mouths, and various support components.
Featuring a standardized modular design with high engineering precision, it offers rapid, flexible, and comprehensive protection for optical fibers.
Innovative design, full arc dead angle protection fiber optic cable.
Tool-free installation, barrier-free connection.
Multiple fiber outlet specifications to meet fiber requirements in various locations.
Powerful compatibility, worry-free expansion.
UL94-V0 highest-level flame-retardant material.
| Product Number | CR24-CO-211-11 |
| Specification dimensions | 240×100(mm) |
| Flame retardant level | UL94-V0 |
| Scope of application | Connection of components of 240-width Straight Duct |
| External dimensions | 287×60×119(mm) |
| Installation requirements | PR-LT5B4 Plastic round handle bolt ×8 |
| Series | 90*170mm Series | 120*170mm Series | 130*170mm Series |
| Product Number(Body) | CRAC-WO-851-11 | CRAC-WO-861-11 | CRAC-WO-871-11 |
| Product Number(Cover) | CRAC-WO-850-11 | CRAC-WO-860-11 | CRAC-WO-870-11 |
| External dimensions(Body) | 186×170×130mm | 250×211×146mm | 226×170×130mm |
| External dimensions(Cover) | 108×103×153mm | 258×260×149mm | 148×103×153mm |
| Flame retardant level | UL94-V0 | UL94-V0 | UL94-V0 |
| Color | Yellow | Yellow | Yellow |
| Materials | PVC / ABS | PVC / ABS | PVC / ABS |
| Corrugated Tube Size | 55mm | 55mm/80mm | 55mm/80mm |
| Installation requirements | Round Plastic Screw with Nut ×2set | ||
.png)

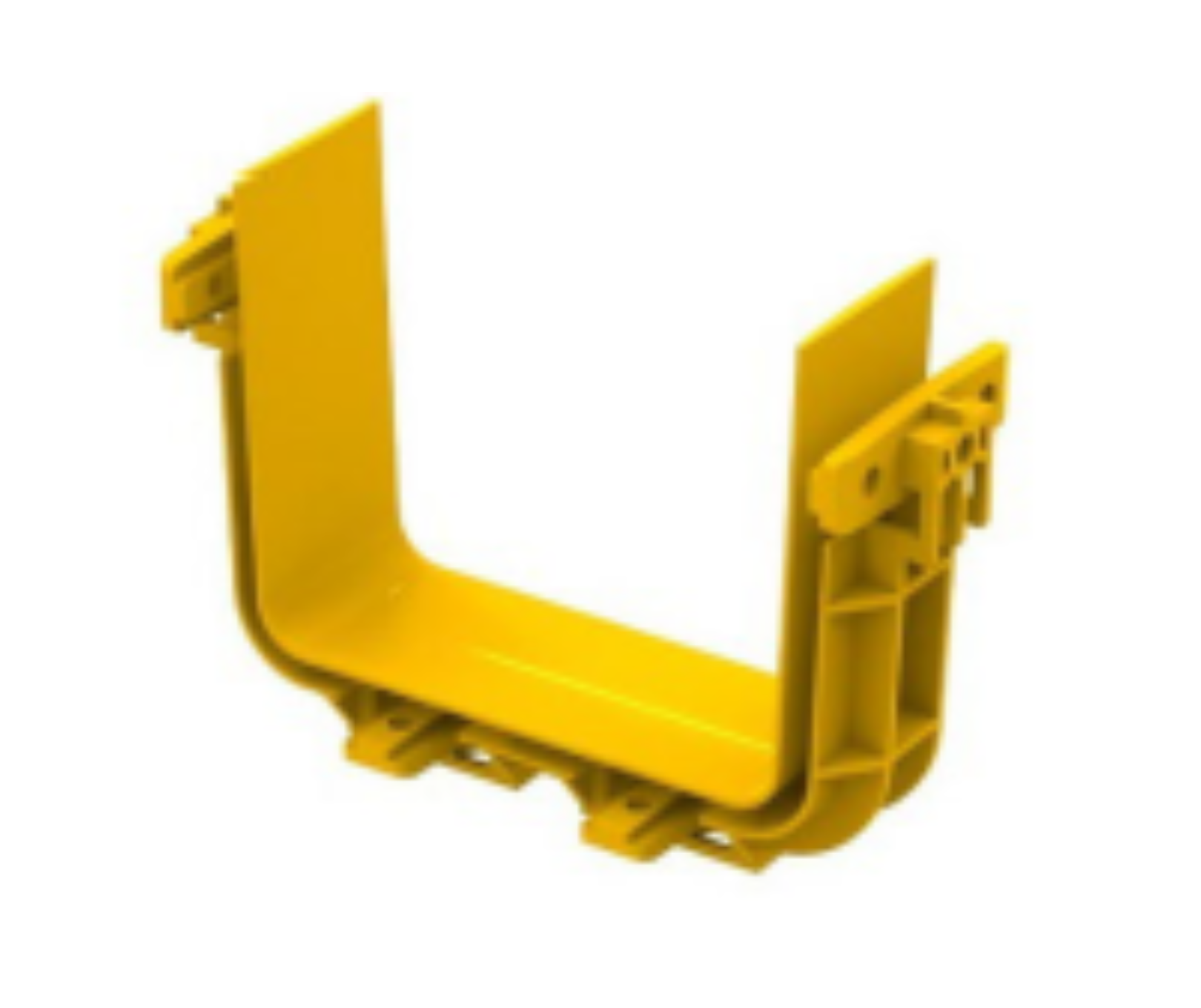

Fiber Optic Raceway 240 Serial
.png)
Fiber Optic Raceway 240 Serial
.png)
Fiber Optic Raceway 240 Serial

Fiber Optic Raceway 240 Serial
