PROSE optical fiber raceway is a set of products that can provide full protection for optical fibers and facilitate operation.
The basic components include: channel body, connectors, horizontal elbows, vertical elbows, horizontal tees, horizontal crosses, vertical tees, adapters, terminal end caps, fiber outlets, bell mouths, and various support components.
Featuring a standardized modular design with high engineering precision, it offers rapid, flexible, and comprehensive protection for optical fibers.
Innovative design, full arc dead angle protection fiber optic cable.
Tool-free installation, barrier-free connection.
Multiple fiber outlet specifications to meet fiber requirements in various locations.
Powerful compatibility, worry-free expansion.
UL94-V0 highest-level flame-retardant material.

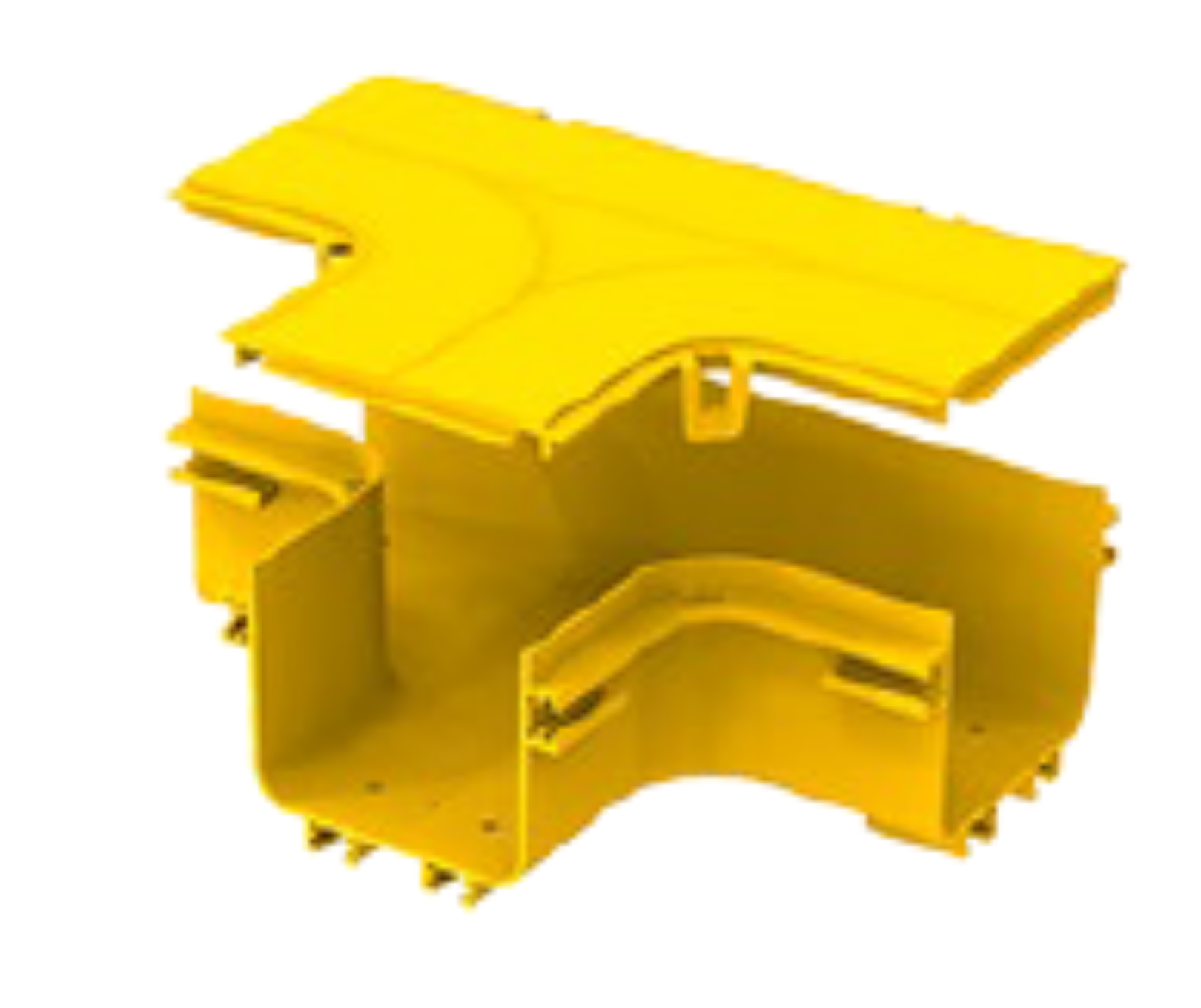

| Product Number | CR24-TE-411-11(Body), CR24-TE-410-11 (Cover) |
| Specification dimensions | 240×100(mm) |
| Flame retardant level | UL94-V0 |
| Scope of application | Applicable to 240 series Straight Duct horizontal T-shaped connection |
| External dimensions | Body: 410×347×121(mm), Cover: 480×381×37(mm) |
| Installation requirements | 3 sets of fittings; cover optional |
