PROSE optical fiber raceway is a set of products that can provide full protection for optical fibers and facilitate operation.

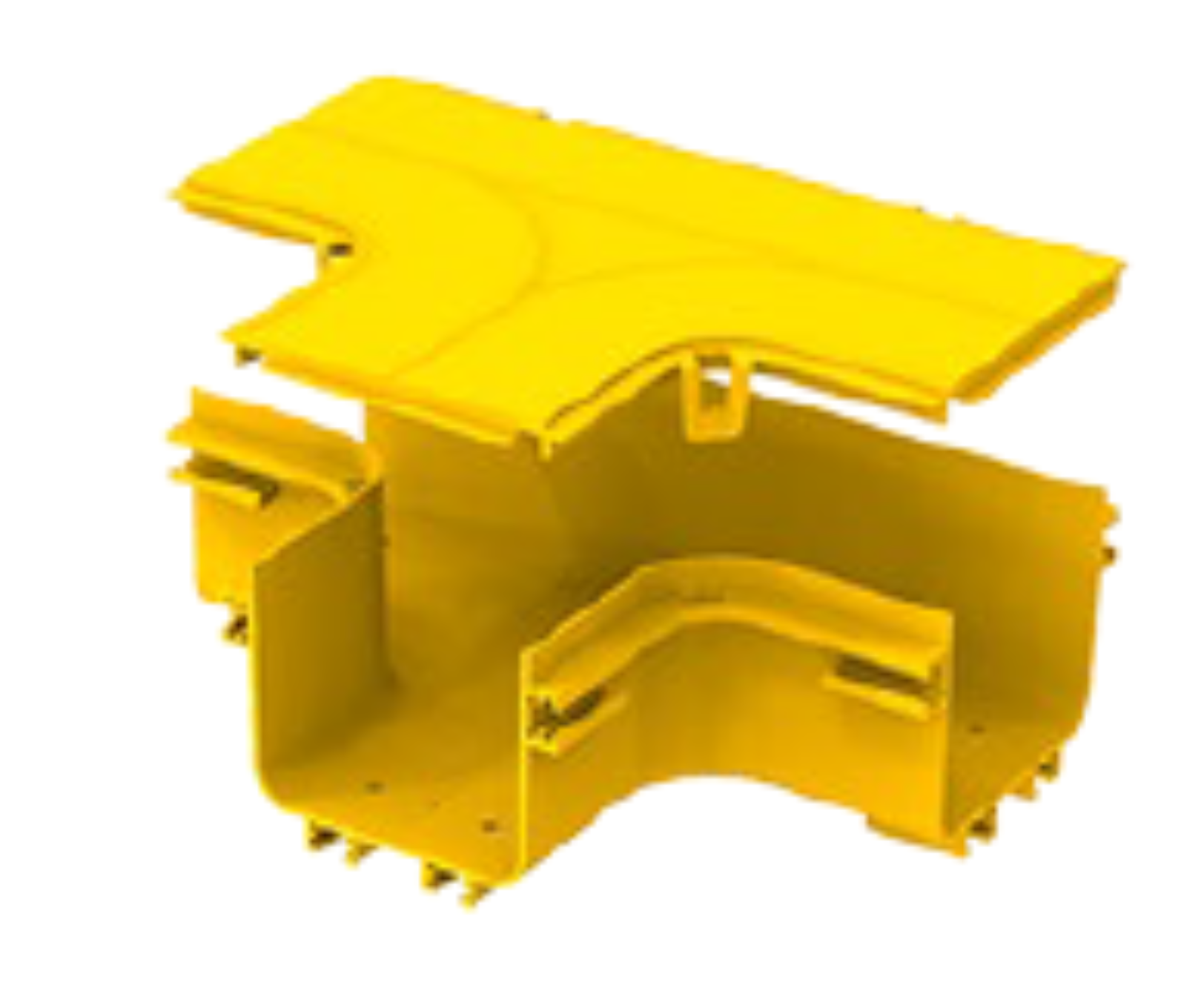

The basic components include: channel body, connectors, horizontal elbows, vertical elbows, horizontal tees, horizontal crosses, vertical tees, adapters, terminal end caps, fiber outlets, bell mouths, and various support components.
Featuring a standardized modular design with high engineering precision, it offers rapid, flexible, and comprehensive protection for optical fibers.
Innovative design, full arc dead angle protection fiber optic cable.
Tool-free installation, barrier-free connection.
Multiple fiber outlet specifications to meet fiber requirements in various locations.
Powerful compatibility, worry-free expansion.
UL94-V0 highest-level flame-retardant material.
| Product Number | CR24-EC-611-11 |
| Specification dimensions | 240×100(mm) |
| Flame retardant level | UL94-V0 |
| Scope of application | Applicable to 240 series Straight Duct End Closure |
| External dimensions | 270×25×116(mm) |
| Installation requirements | ① PR-LT5B4 Plastic round handle bolt ×4 ② PR-LT338 Plastic square nut ×4 |
