High grade copper wire
Flexible stranded conductor
Rated operating voltage: 0.6/1kV
Rated operating temperature: -15°C to +70°C
PROSE RF cable adopts high-quality copper conductor and high-performance insulation structure, effectively ensuring low signal loss and stable transmission performance.
Widely used in communication systems, it can provide stable and reliable signal transmission for various RF equipment and antenna feeder systems.

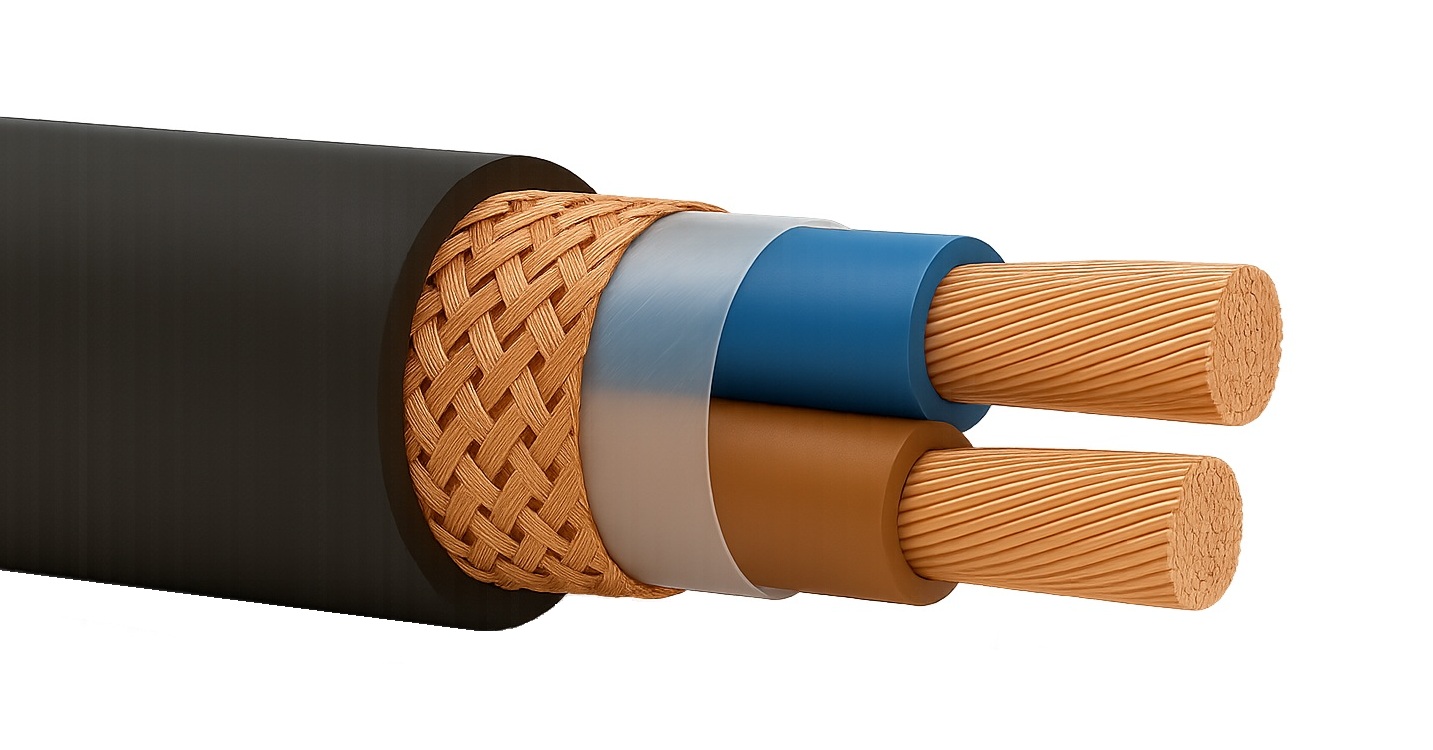

| PWYYK-S2-2CXXmm2-X |
Power cable
|
|
|
1 2 3
|
|
|
| *1 indicate the core quantity, 2-2cores. | ||
| *2 indicate the single core section area. | ||
| *3 indicate the insulation colour, the meaning of the numbers or letters is in the "colour code" table. | ||
|
For example:
|
||
|
Part No.
|
Description
|
|
| PWYYK-S2-2C10mm2-2 | Power cable, 0.6/1kV, 2x10mm^2, Class 5, Black and Blue PVC insulation, Black PVC sheath, Copper clad aluminium wire braiding shield. | |
| PWYYK-S2-2C16mm2-1 | Power cable, 0.6/1kV, 2x16mm^2, Class 5, Blue and Brown PVC insulation, Black PVC sheath, Copper clad aluminium wire braiding shield. | |
| Insulation colour: The meaning of the number or letter is as below. | ||||||||||||
|
Number
|
0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | |||
|
Colour
|
Red, Blue | Blue, Brown | Blue, Black | Blue, Grey | Black, Grey | Red, Black | Black, White | Blue, White | Red, White | |||
|
Sheath colour: Black
|
||||||||||||
|

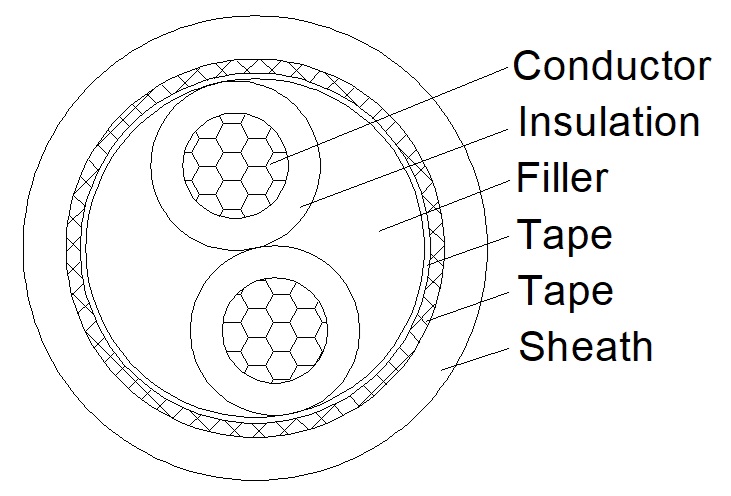

No.
|
Item
|
PWYYK-S2-2CXXmm2-X | |
|
1
|
Conductor
|
Material
|
Annealed bare copper, Class 5 |
| Quantity | 2 cores | ||
|
2
|
Insulation
|
Material
|
PVC |
| 3 | Filler | Material | Optional |
| 4 | Tape |
Material
|
Optional |
| 5 | Shield | Material | Copper clad aluminium wire braiding |
| Coverage | ≥80% | ||
| 6 |
Sheath
|
Material
|
PVC |
|
PN
|
Max. Conductor
resistance, 20°C
(Ω/km)
|
Nom. Insulation thickness
(mm)
|
Min. Sheath thickness
(mm)
|
Approx. Overall
Diameter,
(mm)
|
|
PWYYK-S2-2C1mm2-X
|
19.5 | 0.6 |
0.75
|
8.0
|
| PWYYK-S2-2C1.5mm2-X | 13.3 | 0.7 | 0.75 | 8.9 |
|
PWYYK-S2-2C2.5mm2-X
|
7.98
|
0.8
|
0.75
|
10.2 |
|
PWYYK-S2-2C4mm2-X
|
4.95
|
0.8
|
0.92
|
11.6 |
|
PWYYK-S2-2C6mm2-X
|
3.3
|
0.8
|
0.92
|
12.7 |
|
PWYYK-S2-2C10mm2-X
|
1.91
|
1.0
|
1.09
|
16.9 |
|
PWYYK-S2-2C16mm2-X
|
1.21
|
1.0
|
1.09
|
18.7 |
|
PWYYK-S2-2C25mm2-X
|
0.78
|
1.2
|
1.09
|
22.5
|
|
PWYYK-S2-2C35mm2-X
|
0.554
|
1.2
|
1.26
|
25.1
|
|
PWYYK-S2-2C50mm2-X
|
0.386
|
1.4
|
1.26
|
28.9 |
|
Rated Voltage
|
0.6/1 kV |
|
Dielectric Strength
|
AC 3500V, 5min, no breakdown |
|
Rated Temperature
|
-15°C to +70°C |
|
RoHS
|
Compliant
|
|
Min. Bending Radius
|
6D (D= overall diameter)
|
|
Flame Retardant
|
IEC 60332-1-2
|
