Support up to 8 channels of SISO or MIMO for any band's configuration in band 1/3/8/28/40/41/n78
Support 2G/3G/4G/5G technologies
Suitable for large-scale indoor installations / Neutral Host / Multi-Operator applications
Hybrid DC/Fiber Feed for plug and play installation
Features remote-control and monitoring

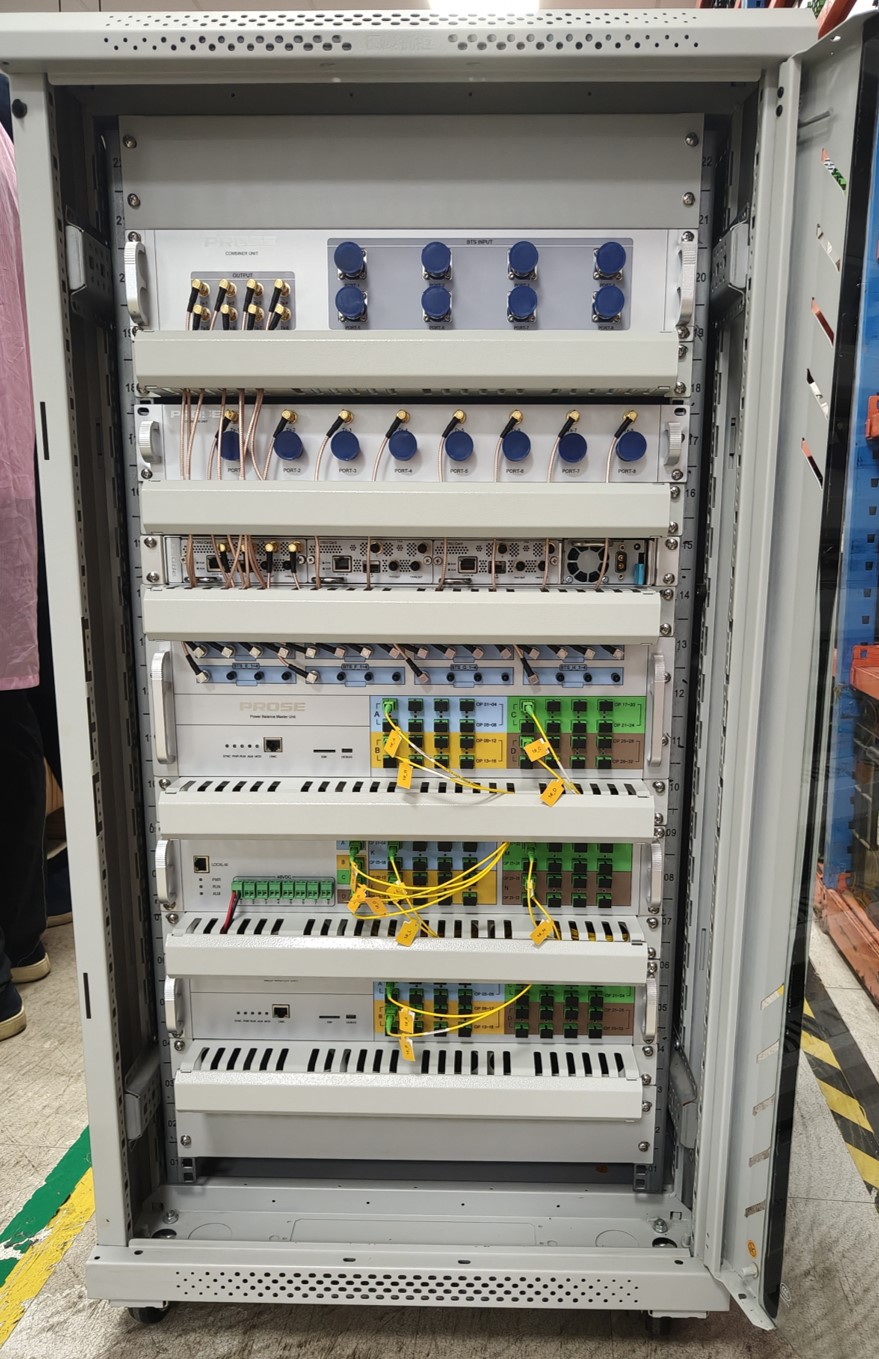

Master Unit integrated solution, 19' cabinet installation for indoor application
| Uplink | Downlink | ||
| Frequency Range | Band 1 (2x2 MIMO) | 1920 - 1980 MHz | 2110 - 2170 MHz |
| Band 3 (2x2 MIMO) | 1710 - 1785 MHz | 1805 - 1880 MHz | |
| Band 8 (2x2 MIMO) |
880 - 915 MHz |
925 - 960 MHz | |
| Band 28 (2x2 MIMO) | 703 - 748 MHz | 758 - 803 MHz | |
|
Band 40 (2x2 MIMO) |
2300 - 2400 MHz |
2300 - 2400 MHz | |
| Band/n41 (4x4 MIMO) | 2496 - 2690 MHz | 2496 - 2690 MHz | |
| n78 | 3300 - 3800 MHz | 3300 - 3800 MHz | |
| Low Power system RF output power | -30 ± 1 dBm (RF) | --- | |
| Operating Temperature Range | -10°C to +40°C |
| Storage Temperature Range | -40°C to +85°C |
|
Relative Humidity |
5% - 98% |
|
Ingress Protection |
IP30 |
| Cooling | Nature cooling |
| Dimensions | 1200 x 800 x 600 mm | |
