Low VSWR, high isolation
Low PIM, low insertion loss
Compact design for easy installation
Customized band is available
|
Frequency |
TRX: 3700-3980MHz |
| Return Loss | ≤-17dB |
| TRX Insertion Loss(Room temp) | ≤0.84dB @ 3700-3720MHz |
| ≤1.18dB @ 3960-3980MHz | |
| ≤0.5dB @ 3720-3960MHz(RMS) | |
| ≤0.73dB @ 3700-3720MHz(RMS) | |
| ≤0.87dB @ 3960-3980MHz(RMS) | |
| TRX Insertion Loss(Full temp) | ≤0.94dB @ 3700-3720MHz |
| ≤1.35dB @ 3960-3980MHz | |
| ≤0.54dB @ 3720-3960MHz(RMS) | |
| ≤0.85dB @ 3700-3720MHz(RMS) | |
| ≤0.98dB @ 3960-3980MHz(RMS) | |
| TRX Rejections | ≥66dB@0.009-420MHz |
| ≥73dB@420-768MHz | |
| ≥67dB@768-852MHz | |
| ≥77dB@852-894MHz | |
| ≥73dB@894-1390MHz | |
| ≥77dB@1390-1559MHz | |
| ≥69dB@1559-1670MHz | |
| ≥77dB@1670-1920MHz | |
| ≥67dB@1920-1930MHz | |
| ≥77dB@1930-2300MHz | |
| ≥86dB@2300-2900MHz | |
| ≥86dB@2900-3100MHz | |
| ≥91dB@3100-3140MHz | |
| ≥101dB@3140-3420MHz | |
| ≥109dB@3420-3450MHz | |
| ≥109dB@3450-3550MHz | |
| ≥77dB@3550-3560MHz | |
| ≥49dB@3560-3600MHz | |
| ≥46dB@3600-3640MHz | |
| ≥41dB@3640-3660MHz | |
| ≥41dB@4000-4020MHz | |
| ≥68dB@4020-4040MHz | |
| ≥76dB@4040-4080MHz | |
| ≥79dB@4080-4200MHz | |
| ≥80dB@4200-4260MHz | |
| ≥72dB@4260-4400MHz | |
| ≥101dB@4400-4540MHz | |
| ≥91dB@4540-4820MHz | |
| ≥86dB@4820-5000MHz | |
| ≥62dB@5000-5150MHz | |
| ≥73dB@5150-5380MHz | |
| ≥53dB@5380-5925MHz | |
| ≥31dB@5925-6425MHz | |
| ≥58dB@6425-6600MHz | |
| ≥46dB@6600-7540MHz | |
| ≥48dB@7540-7820MHz | |
| ≥46dB@7820-8400MHz | |
| Branch Isolation | ≥70dB@3700-3980MHz |
| Power Handling@3700-3980MHz | FU output power 46.6dBm |
| RF port mismatch : All phase angles. 3 dB return loss. | |
| Air pressure:70-106 kPa, PAR=7.5 | |
| Minimum carrier bandwidth is 10MHz. If calculating equivalent CW test power, the adjustment must not exceed 1.8dB. | |
| Design reference for Minimum CW power handling at TX-in port is 2137W. | |
| Intermodulation | IM3 <-81.4dBm @2×43dBm |
| IM5 <-91.4dBm @2×43dBm |
| Temperature | Normal Condition: -10°C to +105°C |
| Exceptional/Safe Function: -30°C to +110°C | |
| Non-Destruction: -40°C to +120°C | |
| Relative Humidity | 5% - 100% |
| Absolute Humidity | 0.26 g/m³ - 40 g/m³ |
| Air Pressure | 70 – 106 kPa |
| Lightning Protection | IEC 62305-1 |

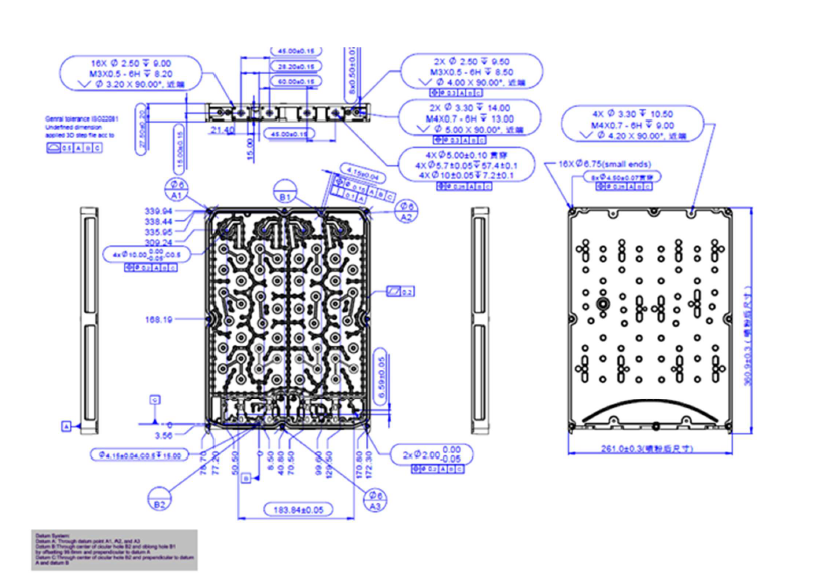

| Dimension | 383*261*34.5mm |
| Weight | 4.1±5% kg |
| Connectors Type | Input port of the FU: PSMP |
| Antenna port: 4.3-10P | |
| Power Reflected from FU to TRX-board: RSMP | |
| Power Forwarded from FU to TRX-board: RSMP | |
| Digital connector: 3×5 pin connector |
