Low VSWR, high isolation
Low PIM, low insertion loss
Compact design for easy installation
Customized band is available
FT-07-60-64F-A01, a t cavity filter tailored for reliable multi-channel operation, combining low VSWR, high isolation, low insertion loss, and low PIM to maintain signal purity under demanding conditions. A compact housing simplifies installation, while customized band availability and AISG / DC bypass functionality support flexible deployment within macro base stations and cellular communication systems.
|
Frequency |
743-803 MHz |
| Return Loss | ≤-18dB |
| Insertion Loss | ≤2.1dB @ 743-803 MHz |
| ≤1.2dB @ 743-802 MHz | |
| Rejection | ≥50dB @806-859 MHz |
| Power Handling | Average:100W |
| Intermodulation | ≤-153dBc @ 2 x 20W |
| Impedance | 50Ω |
| Operating Temperature Range | -10°C to +65°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5%- 95% |
| Applications | IP65 |

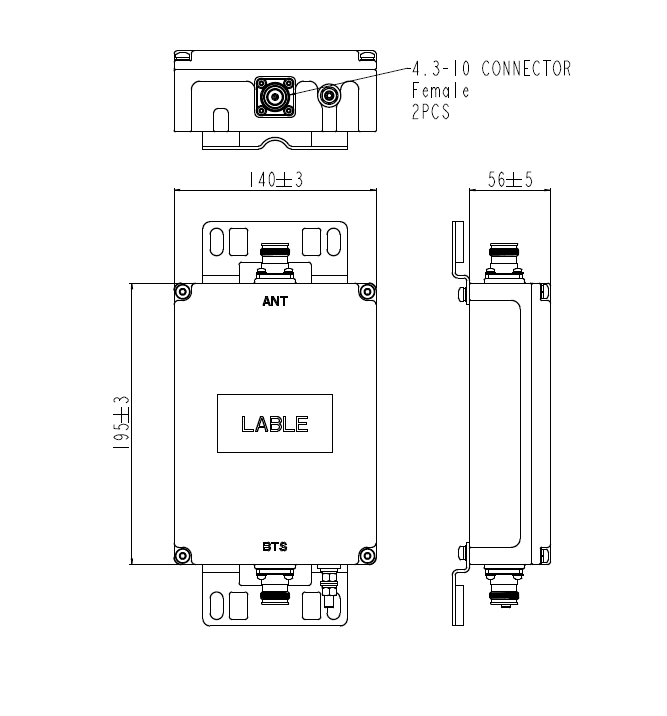

| Dimension | 195 x 140 x 56(mm, excluding brackets and connectors) |
| Weight | ≤2.2kg |
| Connectors Type | 4.3-10 Female |
| Mounting | Wall or pole |
| Packing | 1Pcs in box |
