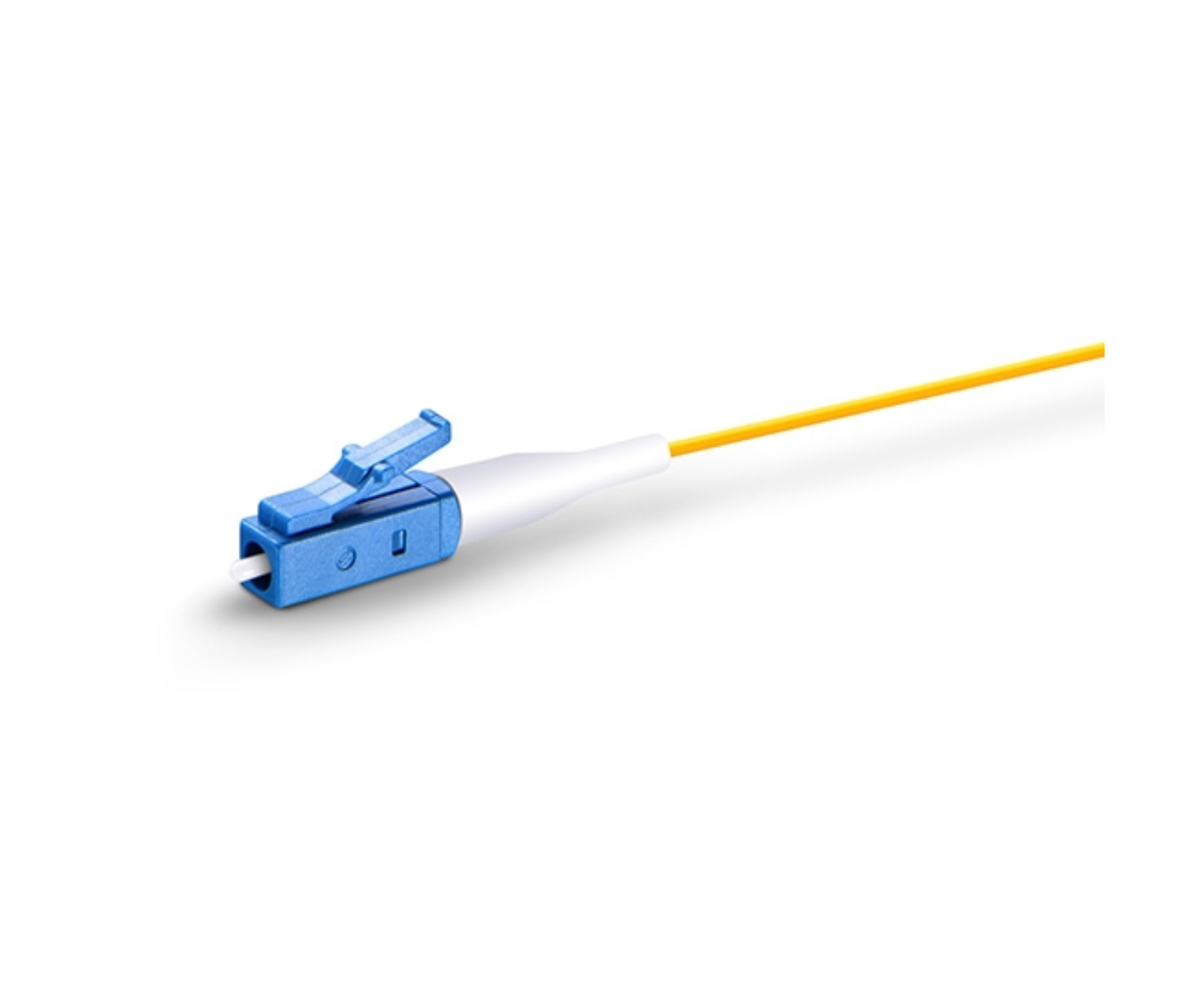

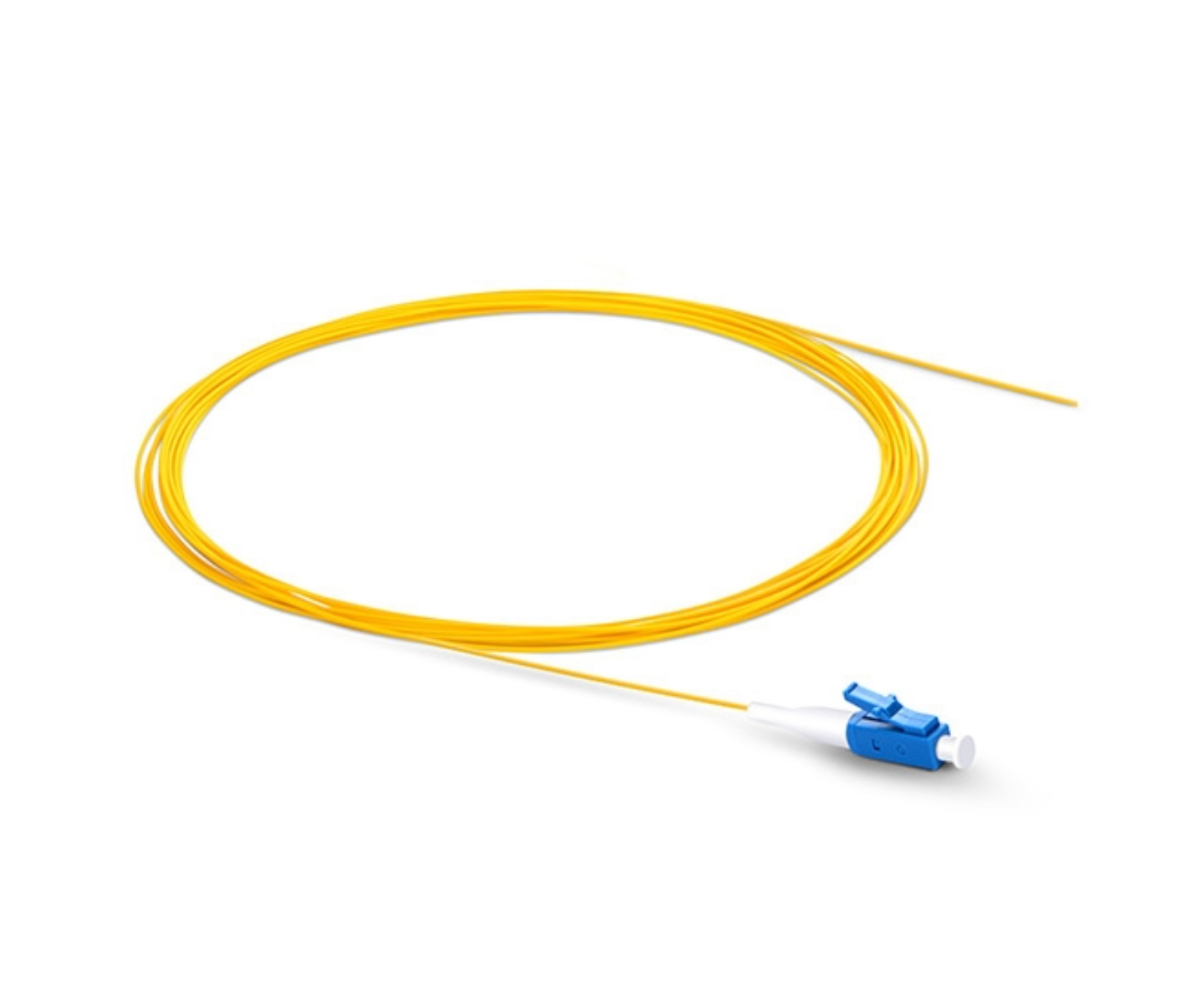

PROSE fiber optic pigtail has one end terminated with an LC, SC, FC, ST or other types of fiber optic connectors, while the other end remains bare for fusion splicing with the main optical cable.
It features stable optical performance, low insertion loss, good flexibility, compact size and light weight.
It is widely used in fiber optic patch panels, optical distribution frames (ODF), fiber termination boxes and other fiber optic distribution systems for cable termination and connection management.
PVC,LSZH and other outer sheath materials can be selected.
OFNR,OFNP and other flame retardant grades can be selected.
Low insertion loss, high return loss.
Two types of end grinding mode: UPC, APC.
Separately packed in plastic bag, including serial number and attenuation data.
Connector types: LC, SC, FC, ST, E2000.
| Fiber Types | Single-mode 9/125um (G652D,G657A/B, etc.) Multi-mode 50/125um (OM3/OM4/OM5) |
| Connecter Variants | Simplex and duplex |
| External Diameter | 0.9mm buffered fiber |
| Delivery Form | Single item in foil bag One product ID label with measurement values per patch cord Serial number label on patch cord |
| LC | Comply with IEC 61754-20 |
| SC | Comply with TIA 568, IEC 874-10 |
| FC | Comply with IEC 60874-7 |
| ST | Comply with TIA 568, IEC 874-14 |
| Insertion Loss Test | According to IEC 61300-3-4 |
| Return Loss Test | According to IEC 61300-3-6 |
| Type | Insertion loss(dB) | Return Loss(dB) | |
| SM:SC; FC; ST; LC,E2000 | Ultra (UPC) | <0.30 dB | >50 dB |
| Angle(APC) | <0.30 dB | >60 dB | |
| MM:SC; FC; ST; LC,E2000 | Ultra (UPC) | <0.30 dB | >25 dB |
| Type | Parameters |
| Core | 1 |
| Tensile strength (N) | 150 |
| Compressive strength (N/cm) | 15 |
| Minimum Bending Radius for Installation(mm) | 20 times O.D |
| Minimum Bending Radius for Operation (mm) | 10 times O.D |
| Installation Temperature(℃) | 0-50℃ |
| Operating Temperature(℃) | -20 to +60℃ |
| Transportation and Storage Temperature(℃) | -25 to +70℃ |
