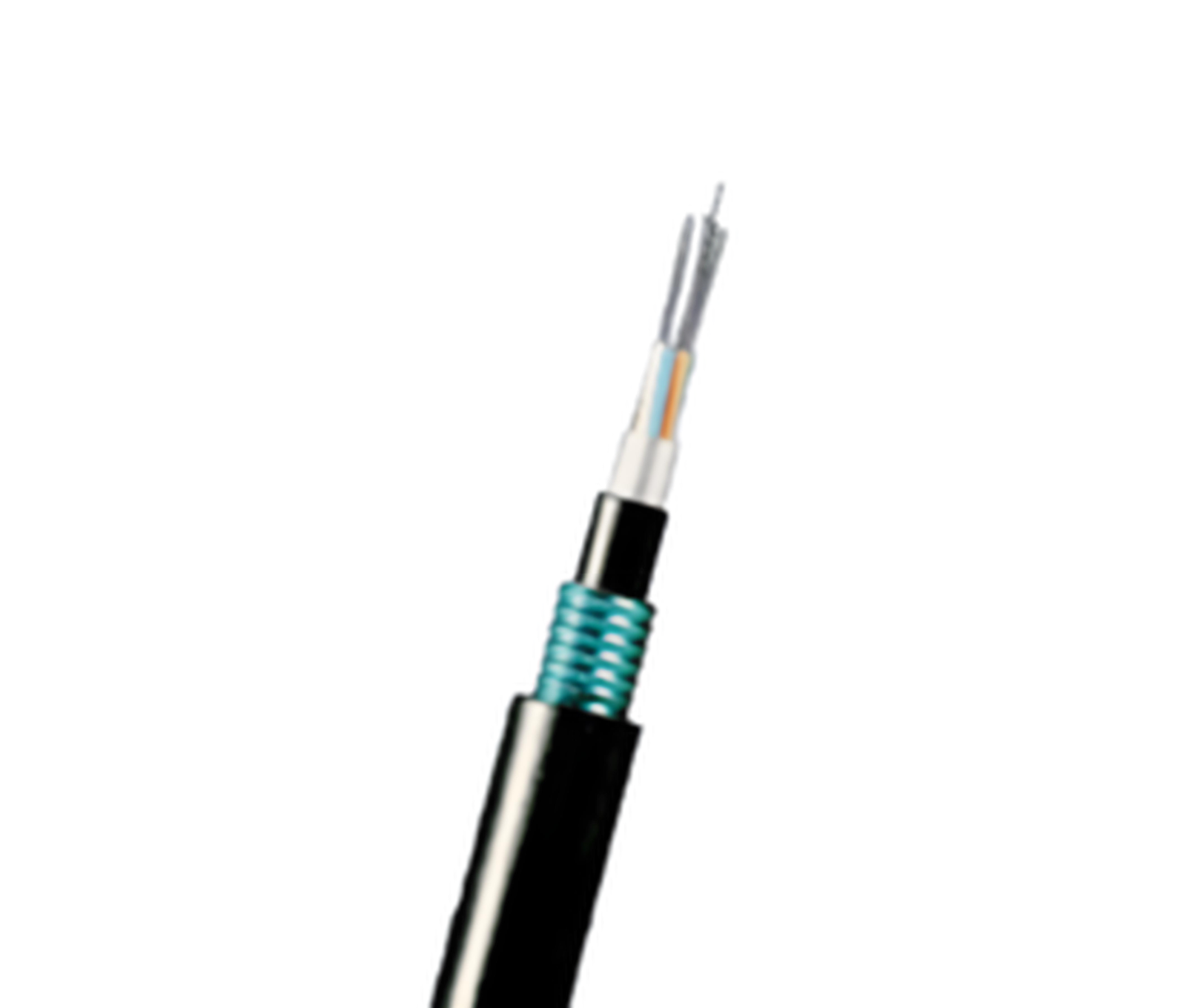

PROSE outdoor optical fiber FC06 series cables are designed for fiber solutions mainly used for fiber optic connections in outdoor areas, backbone conduit or overhead connections between buildings.

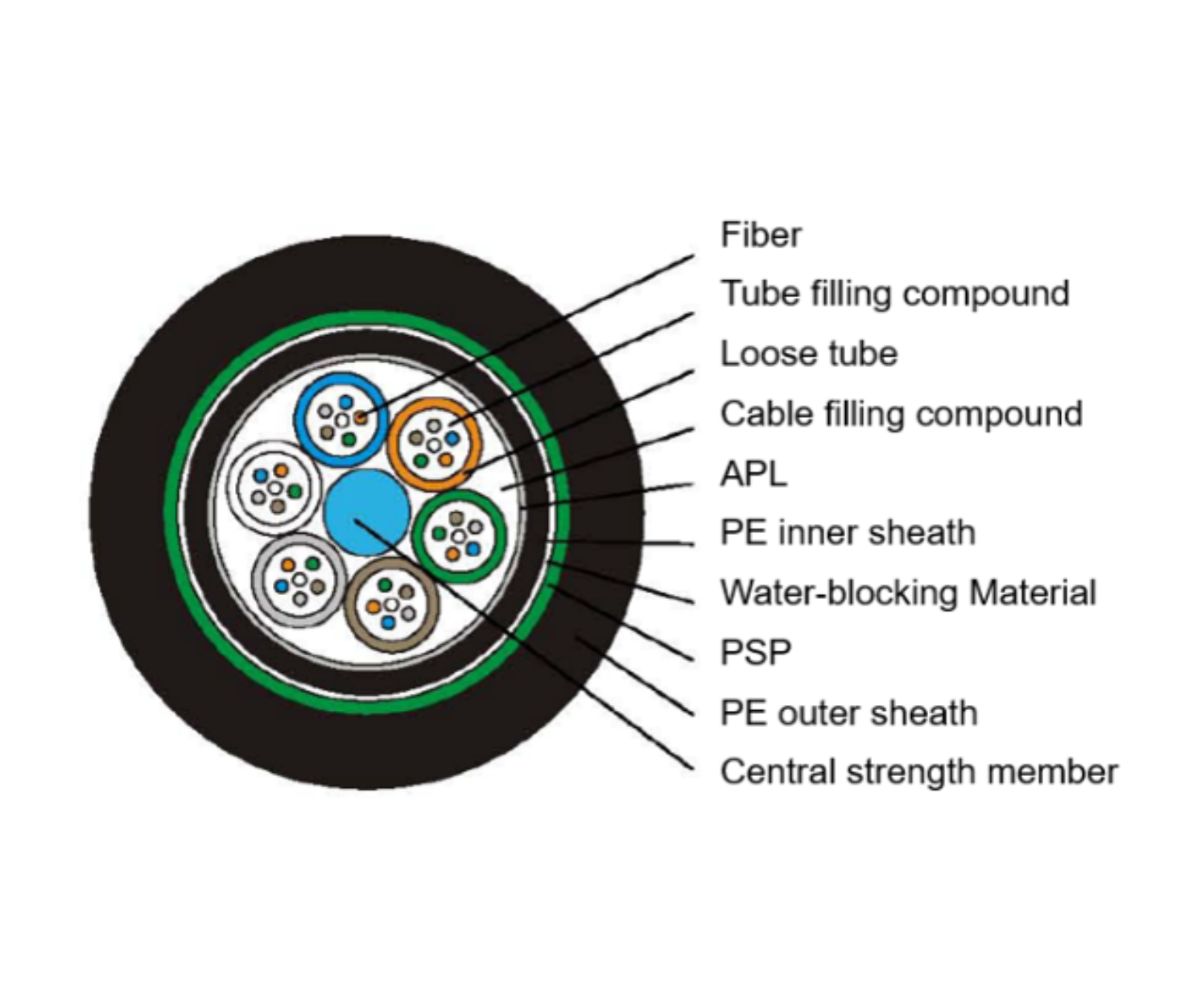

The structure of this fiber, 250μm are positioned in a loose tube made of a high modulus plastic.
The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene(PE)for cable with high fiber count, locates in the center of core as a metallic strength member.
Tube (and fillers) are stranded around the strength member into a compact and circular cable core.
After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath
Good mechanical and temperature performance;
High strength loose tube that is hydrolysis resistant;
Special tube filling compound ensure a critical protection of fiber;
Crush resistance and flexibility;
Steel wire used as the central strength member;
| Item | Specification | |
| Core diameter | 50 ± 2.5 μm | |
| Core-cladding concentricity | ≤ 1.5 μm | |
| Cladding non-circularity | ≤ 2.0 % | |
| Coating diameter | 245 ± 10 μm | |
| Cladding-coating concentricity | ≤ 12.5 μm | |
| Cladding diameter | 125 ± 1.0 μm | |
| Attenuation coefficient | @ 850 nm | ≤ 3.3 dB/km |
| @ 1310 nm | ≤ 1.0 dB/km | |
| Bandwidth | @ 850 nm | ≥ 1500 MHz.km |
| @ 1310 nm | ≥ 500 MHz.km | |
| Fiber Type | G.652 | G.655 | 50/125μm | 62.5/125μm | |
| Attenuation(+20℃) | @850nm | ≤3.0dB/km | ≤3.3dB/km | ||
| @1300 | ≤1.0dB/km | ≤1.0dB/km | |||
| @1310 | ≤0.36dB/km | ≤0.40dB/km | |||
| @1550 | ≤0.22dB/km | ≤0.23dB/km | |||
| Bandwidth | @850 | ≥500MHz··km | ≥200MHz··km | ||
| @1300 | ≥500MHz··km | ≥500MHz··km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1450nm | |||
| Items | Request | |
| Tensile Strength, N | Short-term | 3000 |
| Long-term | 1000 | |
| Crush Resistance, N/100mm | Short-term | 3000 |
| Long-term | 1000 | |
| Bending Radius, mm | Static | 12.5D |
| Dynamic | 25D | |
| Operation temperature | -40℃ to +70℃ | |
| Storage temperature | -40℃ to +70℃ | |
