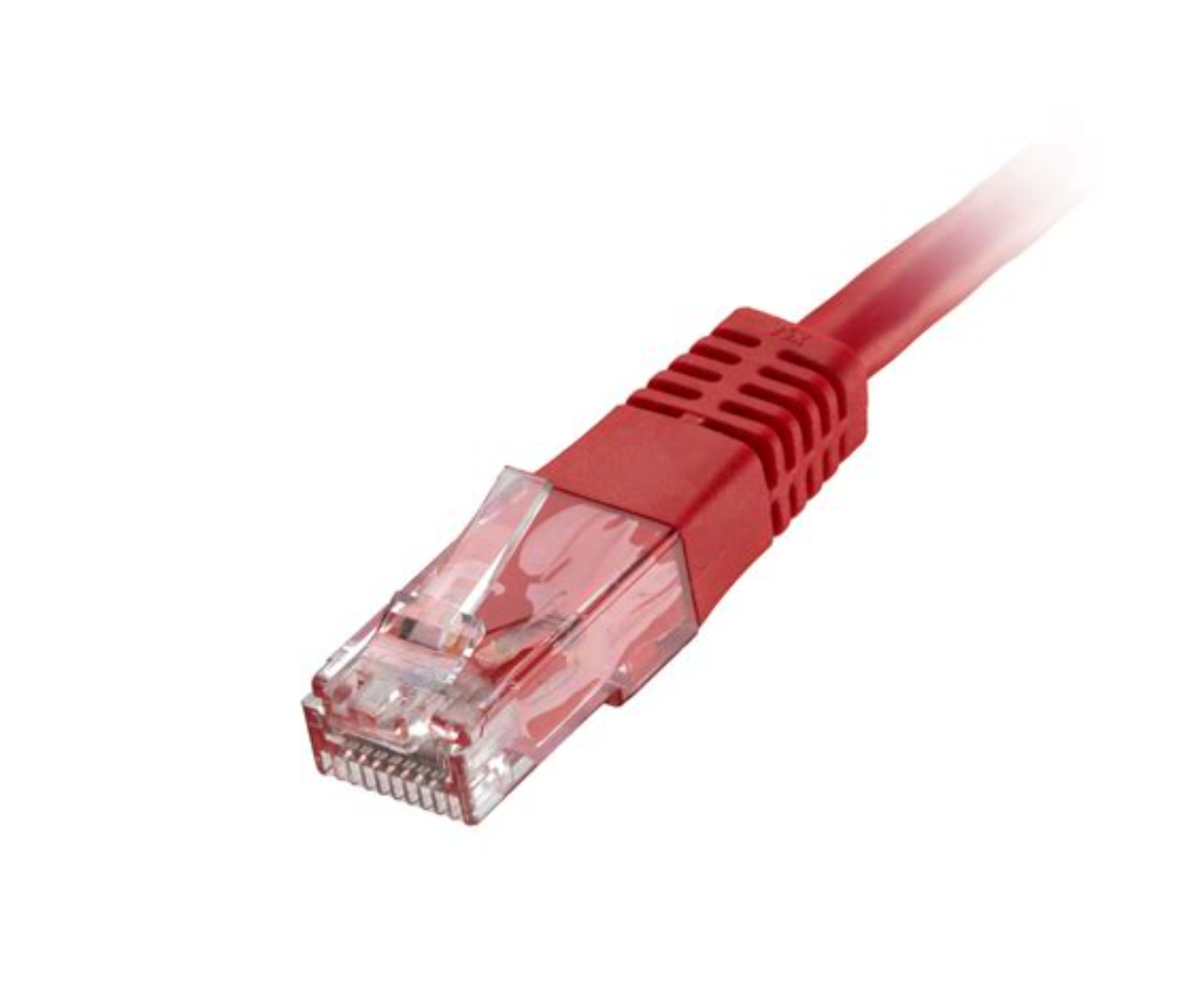

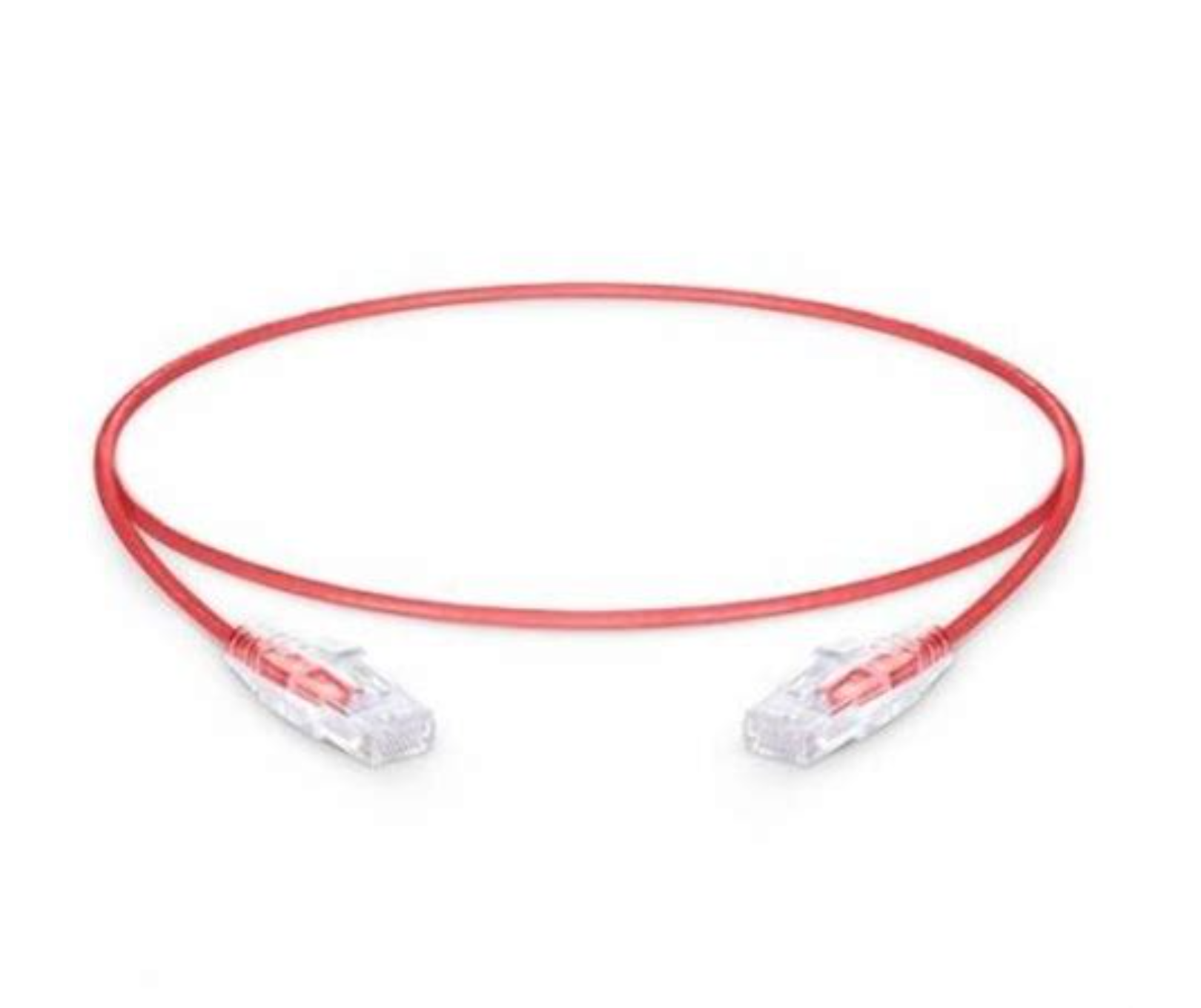

Prose CAT.6 patch cords are used in structured cabling applications, for transmiting voice, data and video signals.
They support current high-band width applications, especially are suitable for Class E solution.
Excellent performance and easy installation.
360-degree overmolded boot provides excellent plug-to-cable strain relief.
Connector contacts are plated with gold of 50μ’’ thick, minimizing contact resistance, supporting transmission of high frequency signals.
Different colors are available to distinguish different networks easily. Blue, Orange, Grey, Purple, Red, White, etc, other color is customized.
| Items | Parameters |
| Category | Cat.6 |
| Conductor Type | Stranded copper wire: 24AWG. 26AWG, 28AWG are optional. |
| External dimensions (Unshielded) | Cat6A: 6.2±0.2mm(24AWG); 3.6±0.2mm(28AWG); |
| External dimensions (Shielded) | Cat6A: 6.2±0.2mm(26AWG); 5.6±0.2mm(28AWG); |
| Conductor Paris | 4 Pairs |
| Connector Type | RJ45-RJ45 |
| Connector Contact Material | Copper alloy with contact plating of 50μ’’ gold |
| Cable Structure | U/UTP, F/UTP,U/FTP, S/FTP are optional. |
| Jacket Material | PVC CM, LSZH,PVC |
| Jacket Color | Blue, Orange, Grey, Purple, Red, White, etc. Other colors can be customized. |
| Material | Bare copper (99.99%) |
| Connector | 8P8C |
| Storage Temperature | 0 to +50℃ |
| Operating Temperature | -10℃ to +60℃ |
| Frequency (MHz) |
NEXT (dB) | RL (dB) |
||
| 2m Cord | 5m Cord | 10m Cord | ||
| 1 | 65.0 | 65.0 | 65.0 | 19.8 |
| 4 | 65.0 | 65.0 | 65.0 | 21.6 |
| 8 | 65.0 | 65.0 | 64.8 | 22.5 |
| 10 | 65.0 | 64.5 | 62.9 | 22.8 |
| 16 | 62.0 | 60.5 | 59.0 | 23.4 |
| 20 | 60.1 | 58.6 | 57.2 | 23.7 |
| 25 | 58.1 | 56.8 | 55.4 | 24.0 |
| 31.25 | 56.2 | 54.9 | 53.6 | 23.0 |
| 62.5 | 50.4 | 49.2 | 48.1 | 20.0 |
| 100 | 46.4 | 45.3 | 44.4 | 18.0 |
| 125 | 44.5 | 43.5 | 42.7 | 17.0 |
| 150 | 43.0 | 42.1 | 41.4 | 16.2 |
| 175 | 41.8 | 40.9 | 40.2 | 15.5 |
| 200 | 40.6 | 39.8 | 39.3 | 15.0 |
| 225 | 39.7 | 38.9 | 38.4 | 14.5 |
| 250 | 38.8 | 38.1 | 37.6 | 14.0 |
