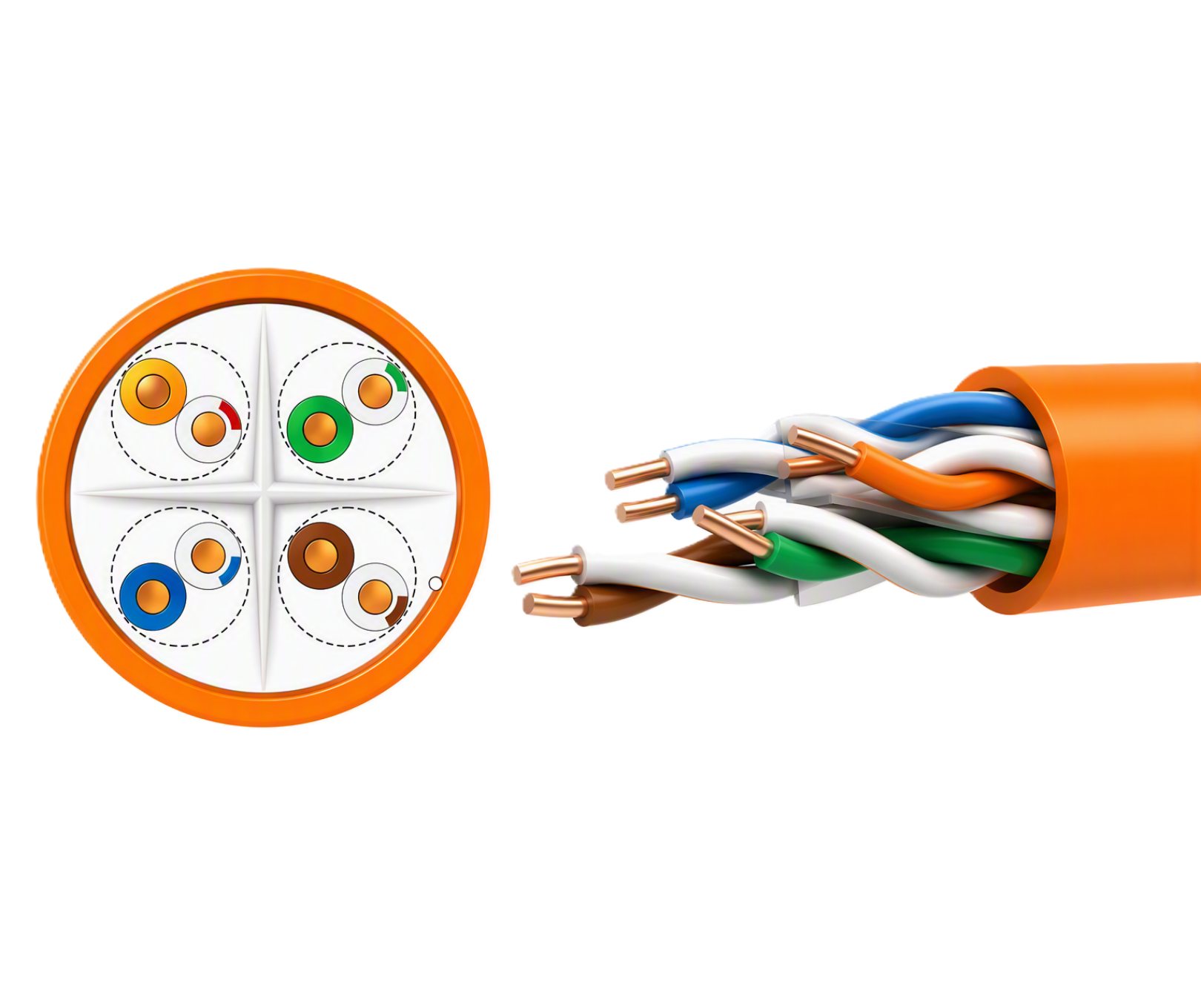

Prose CAT6 UTP 24WG data cables are designed for unshielded cabling system.
Prose Category 6 data cables meet the requirements of ANSI/TIA-568.2-D, UL444 and ISO/IEC11801 2nd.
Prose provides different jacket material such as PVC, CM, CMR, CMP, LSZH for different applications.
Prose Cat6 UTP 24AWG data cables are designed for unshielded structured cabling systems.
Prose Category 6 data cables comply with ANSI/TIA-568.2-D, ISO/IEC 11801 and UL444 requirements, providing reliable performance for voice, data and video transmission.
The 24AWG solid conductor design ensures stable signal transmission, low attenuation and excellent network performance for Gigabit Ethernet applications.
Prose provides different jacket materials such as PVC, CM, CMR, CMP and LSZH to meet various installation environments and project requirements.
| Construction | 4×2×24AWG |
| Conductor O.D | 0.530±0.005mm |
| Insulation Material | HDPE |
| Insulation Diameter | 0.95±0.05mm |
| Sheath Thickness | 0.55±0.05 mm |
| Nominal diameter | 5.8±0.4mm |
| Surface | Clean, Frap, Satiation |
| Sheath | PVC,CM,LSZH |
| Sheath Color | Grey(PVC), Blue(PVC CM), Orange(LSZH), Purple, Red, White, etc, other color is customized |
| Length | 305+0.2m |
| Frequency(MHz) | ATT (dB/100m) |
NEXT (dB) |
RL (dB) |
PSNEXT (dB) |
ACRF (dB) |
PSACRF (dB) |
| Max. | Min. | Min. | Min. | Min. | Min. | |
| 1 | 2.0 | 74.3 | 20.0 | 72.3 | 67.8 | 64.8 |
| 4 | 3.8 | 65.3 | 23.0 | 63.6 | 55.8 | 52.8 |
| 8 | 5.3 | 60.8 | 24.5 | 58.8 | 49.7 | 46.7 |
| 10 | 6.0 | 59.3 | 25.0 | 57.3 | 47.8 | 44.8 |
| 16 | 7.6 | 56.2 | 25.0 | 54.2 | 43.7 | 40.7 |
| 20 | 8.5 | 54.8 | 25.0 | 52.8 | 41.8 | 38.8 |
| 25 | 9.5 | 53.3 | 24.3 | 51.3 | 39.8 | 36.8 |
| 31.25 | 10.7 | 51.9 | 23.6 | 49.9 | 37.9 | 34.9 |
| 62.5 | 15.4 | 47.4 | 21.5 | 45.4 | 31.9 | 28.9 |
| 100 | 19.8 | 44.3 | 20.1 | 42.3 | 27.8 | 24.8 |
| 200 | 29.0 | 39.8 | 18.0 | 37.8 | 21.8 | 18.8 |
| 250 | 32.8 | 38.3 | 17.3 | 36.3 | 19.8 | 16.8 |
| DC resistance | ≤9.38ohm/100m |
| Unbalanced resistance | ≤5% |
| Unbalance capacitance | ≤330pF/100m |
| Capacitance | ≤5.6nF/100m |
| Dielectric strength | DC 1kv (3s No Fail) |
| Insulation resistance | ≥5000Mohm.Km |
| Impedance Delay skew |
1-250MHZ (100±15) ohm |
| ≤45ns |
| Bending radius | |
| During installation (min.) | 8×outer diameter |
| Installed (min.) | 4×outer diameter |
| Temperature range | |
| During installation | 0℃ to +50℃ |
| Installed | -20℃ to +60℃ |
