PROSE Cat5e/Cat6/Cat6A crystal plugs are designed for shielded and unshielded cabling system application.
All plugs can be crimped with standard crimping tools.
It can be applied to scenarios such as Ethernet connection, industrial network communication, intelligent building systems and data centers.
The connection is stable and reliable, which can ensure the stable transmission of electrical signals.
Fast transmission speed, supporting high-speed network transmission.
It has strong compatibility and adopts the standardized RJ-45 interface, which is compatible with common network devices.
The installation is simple, convenient and fast, reducing the difficulty and cost of wiring.
| Comply and exceed TIA-568.2-D, ISO 11801 requirements. | |
| RoHS Compliance | Compliant. |
| FCC and ANSI Compliance | Meets ANSI/TIA-1096-A (formerly FCC part 68). |
| IEC Compliance | IEC-60603-7. |
| PoE Compliance | Supports PoE, PoE+ and proposed type 3 and 4 PoE++ applications for up to 100W. |
| Plug Housing | UL94V-0 rated clear polycarbonate. |
| Contacts | Gold plated phosphor bronze. |
| Cable Jacket Diameter Range | 5.7mm-6.4mm |
| Conductor Insulation Diameter Range | 0.91mm-1.1mm |
| Operating Temperature | -10℃-60℃ |
| Storage Temperature | -40℃-70℃ |

Cat6A Unshielded Keystone Jack Toolless

Cat8 Shielded Keystone Jack

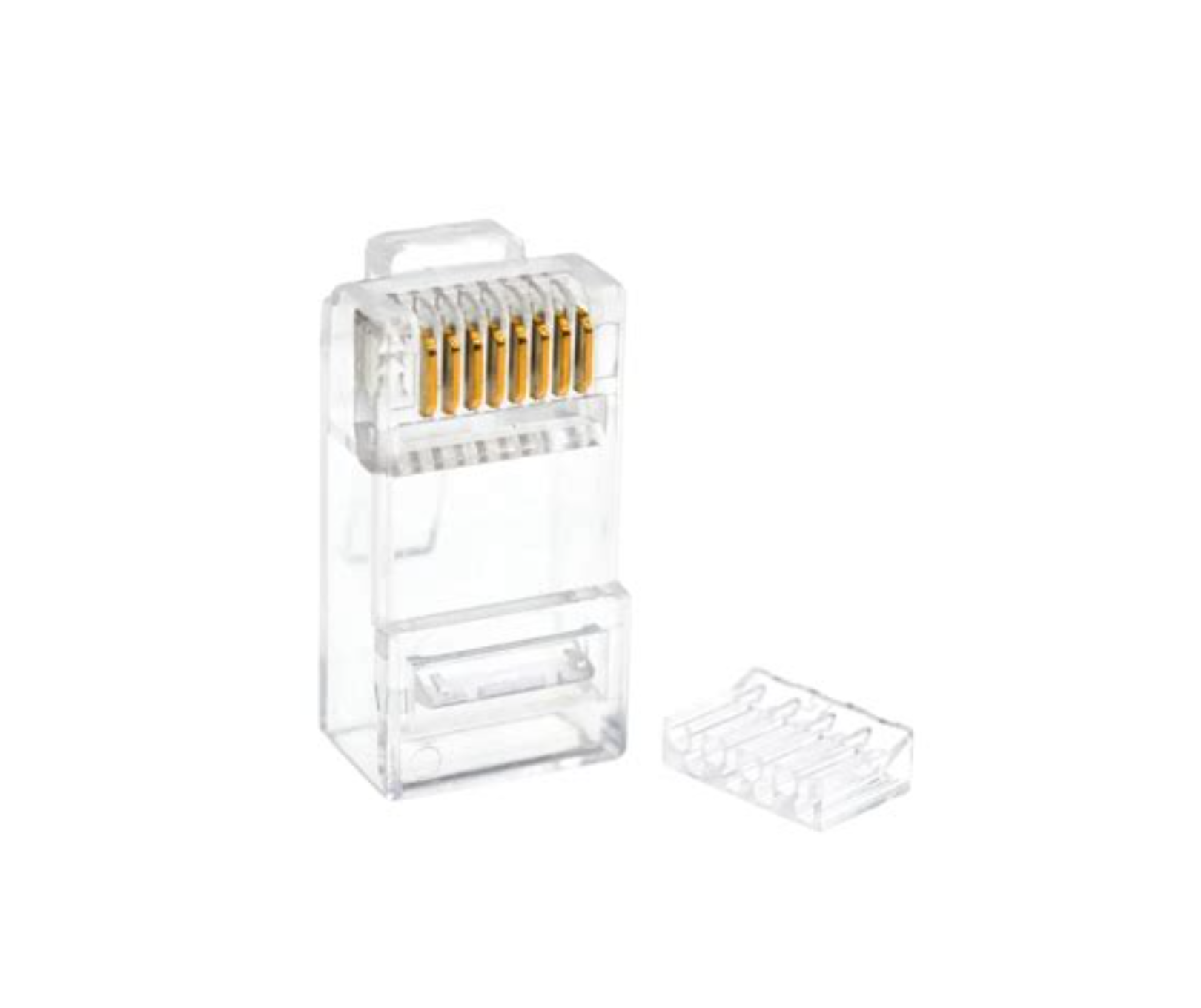

RJ45 Crystal Plug / Connector
