PROSE outdoor optical fiber FC09 series cables are designed for fiber solutions mainly used for fiber optic connections in outdoor areas.

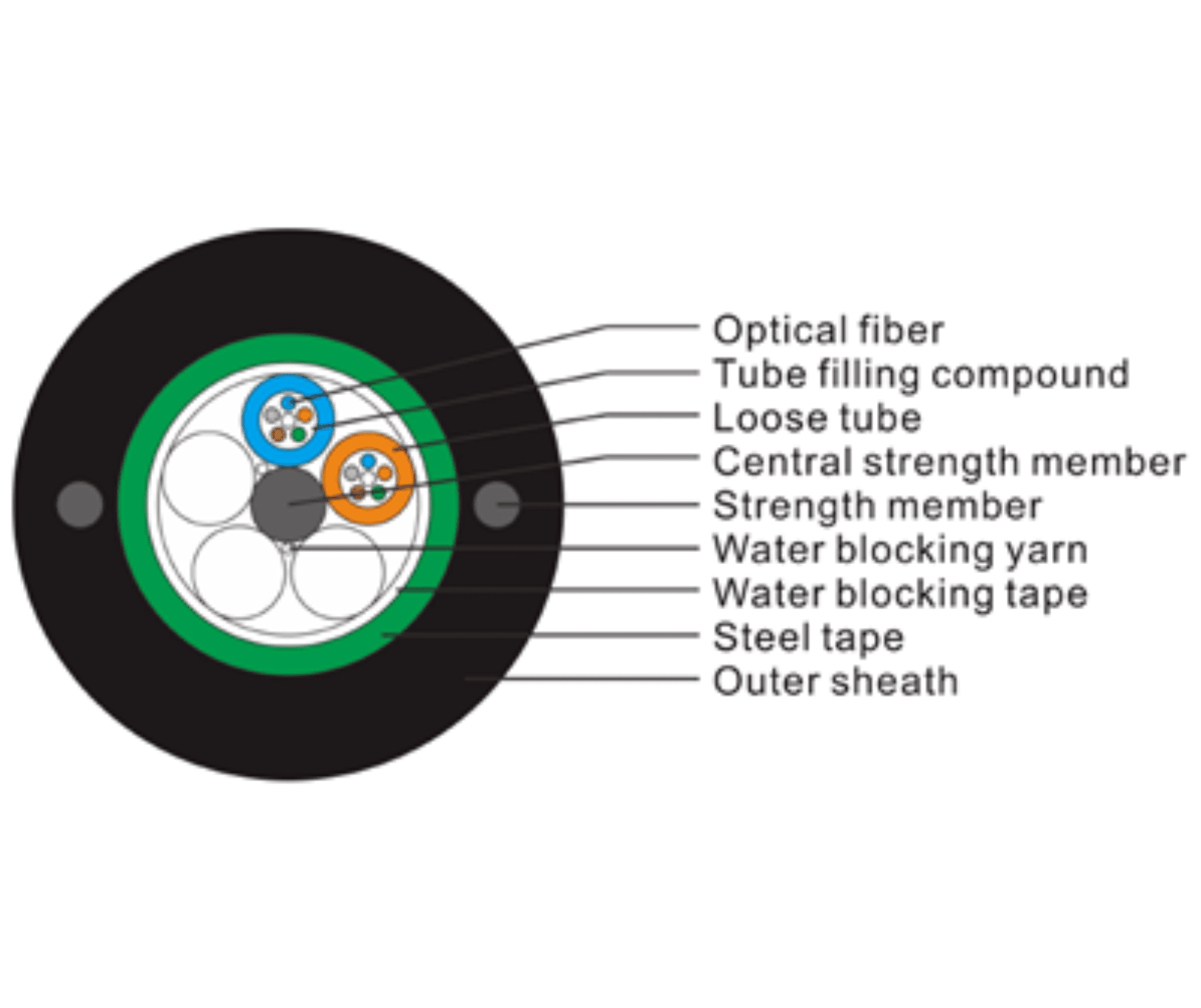

The structure of this cable consists of a 250um (singlemode or multimode) optical fiber sleeved in a loose casing made of high modulus polyester material filled with a waterproof compound.
In the center of the cable core is a central strength member, which is fiber reinforced plastics (FRP).
The tube is longitudinally wrapped with a double-sided chromium-coated plastic steel strip, and water blocking material is added between the steel strip and the tube to ensure the compact and longitudinal water blocking of the cable.
Two parallel steel wires are placed on both sides of the tube and the extruded PE sheath is formed.
The double-sided coated plastic steel strip can improve the anti-moisture ability of optical cable;
Two parallel steel wires can ensure the tensile strength of the fiber cable;
single mode, multi-mode can be selected;
| Items | Specification | ||
| Fiber Count | 4 / 6 / 8 / 12 | 16 / 24 | |
| Optical Fiber | Diameter | 250 µm | |
| Type | Single-mode (G652D/ G657) or Multi‑mode (OM2/OM3/OM4/OM5) | ||
| Loose Tube | Material | High modulus polyester | |
| Filling | Water‑blocking gel | ||
| Cable | Central Strength Member | FRP | |
| Armoring | Double‑sided coated steel tape | ||
| Parallel Strength Member | Two parallel steel wires | ||
| Outer Sheath | PE | ||
| Fiber Type | Single-mode G652D | |
| Attenuation (dB/km) | At 1310 nm | ≤ 0.36 |
| At 1550 nm | ≤ 0.22 | |
| Zero Dispersion Slope | ≤ 0.092 ps/(nm²·km) | |
| Mode Field Diameter (1310 nm) | 9.2 ± 0.4 µm | |
| Cladding Diameter | 125 ± 1.0 µm | |
| Items | Parameters |
| Cable Bending Radius (static) | 10 – 30 mm |
| Cable Bending Radius (dynamic) | 20 – 60 mm |
| Operating Temperature Range | -10°C ~ +60°C |
| Storage / Transport Temperature | -40°C ~ +70°C |
| Installation Temperature | -5°C ~ +50°C |
