Low VSWR, high isolation
Low PIM, low insertion loss
Compact design for easy installation
Customized band is available
AISG/DC bypass

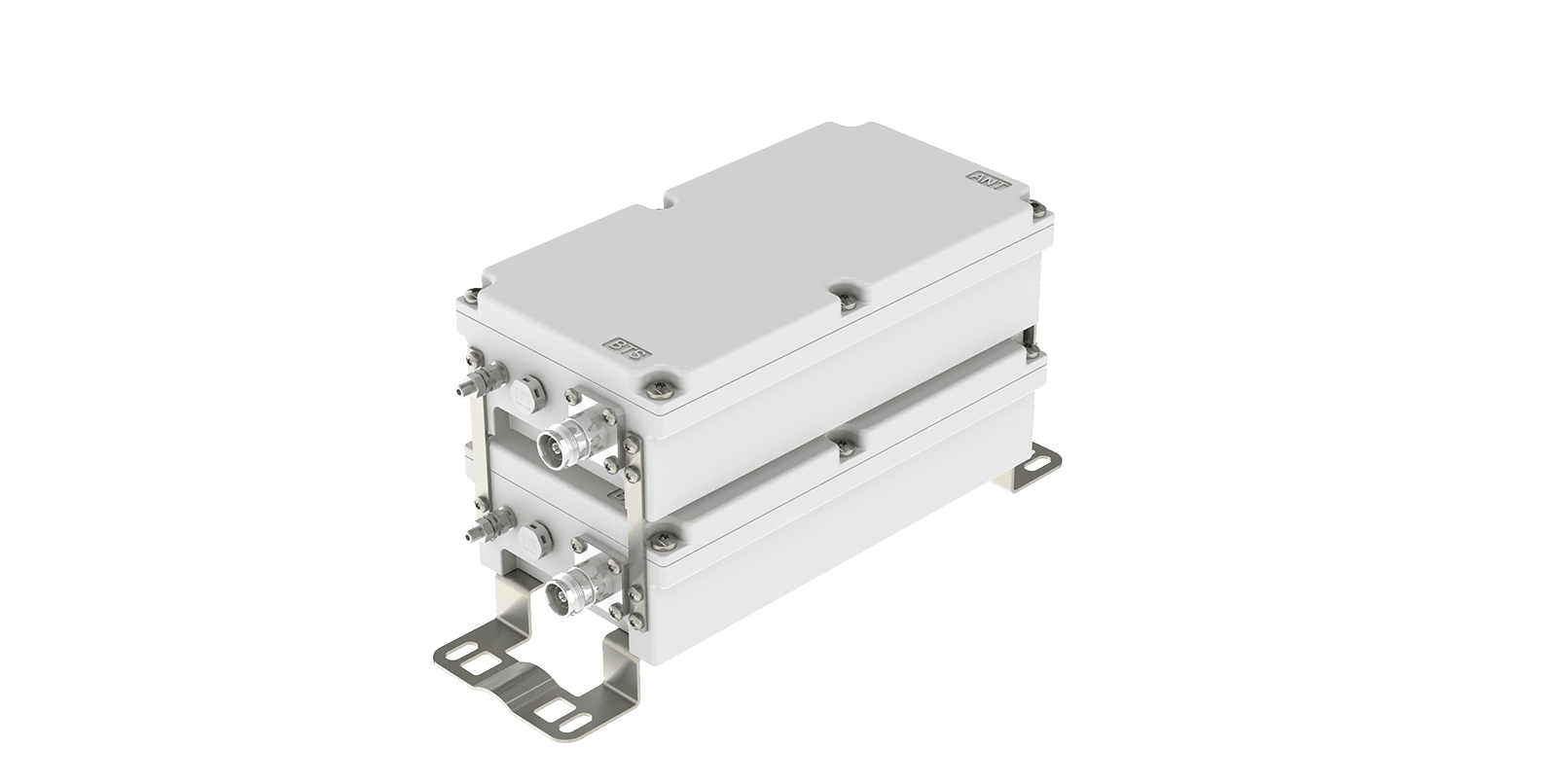

DFT-09-75-64F-03, a double-unit cavity filter tailored for reliable multi-channel operation, combining low VSWR, high isolation, low insertion loss, and low PIM to maintain signal purity under demanding conditions. A compact housing simplifies installation, while customized band availability and AISG / DC bypass functionality support flexible deployment within macro base stations and cellular communication systems.
|
Frequency |
885-960 MHz |
| Return Loss / VSWR | ≤-19dB /1.25 |
| Insertion Loss | ≤1.3dB @885-905 MHz |
| ≤0.5dB @905-960 MHz | |
| Rejection | ≥ 65dB @859-880 MHz |
| ≥ 50dB @824-859 MHz | |
| Power Handling | Average:100W |
| DC Bypass | DC bypass for all ports |
| Intermodulation | ≤-150dBc @ 2 x 20W |
| Impedance | 50Ω |
| Operating Temperature Range | 0°C to +55°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5%- 95% |
| Applications | IP67 |

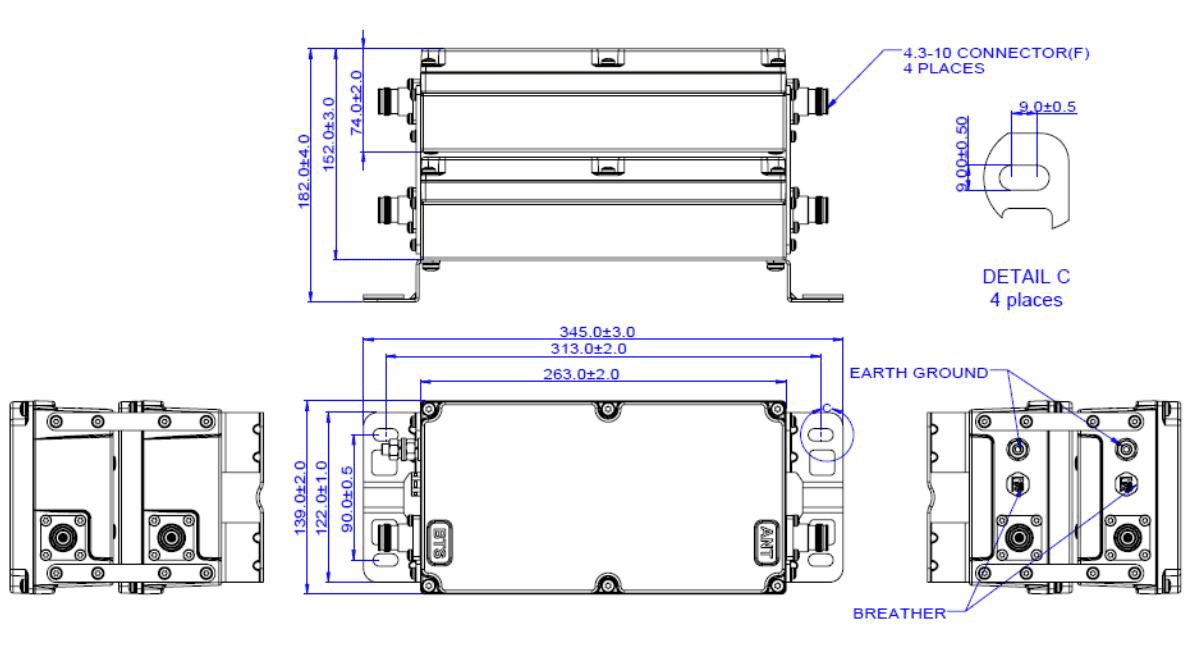

| Dimension | 263 x 139 x 152 (mm, excluding brackets and connectors) |
| Weight | ≤6kg |
| Connectors Type | 4.3-10 female |
| Mounting | Wall or pole |
