Support SISO for band 3/8/40/n41/n78 and 2x2 MIMO for band 1
Supports up to 46dBm RF power per band at the output port
A compact modular platform
Management via OMT or NMS management software
Easy be installed on the wall, tunnel and ground

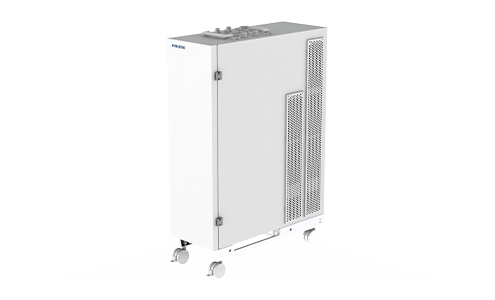

43dBm output power,N78, modular design with cabinet,up to hex-band
| Uplink | Downlink | ||
| Frequency Range | Band 1 | 1920 - 1980 MHz | 2110 - 2170 MHz |
| Band 3 | 1710 - 1785 MHz | 1805 - 1880 MHz | |
| Band 8 | 880 - 915 MHz | 925 - 960 MHz | |
| Band 40 | 2300 - 2400 MHz | 2300 - 2400 MHz | |
| n41 | 2496 - 2690 MHz | 2496 - 2690 MHz | |
| n78 | 3300 - 3700 MHz | 3300 - 3700 MHz | |
| RF Output Power | Band 1/3/8/40/41 | --- | 43 ± 1 dBm |
| n78 | --- | 46 ± 1 dBm | |
| Power Supply | AC90 ~ 264V, 50/60Hz | ||
| Operating Temperature Range | -25ºC to +55ºC |
| Storage Temperature Range | -40°C to +85°C |
|
Relative Humidity |
10% - 95% |
| Ingress protection | IP65 |
| Cooling | Fan cooling |
| RF Connectors Type | 6 x 4.3-10 Female | |
